GPS Module (G-mouse)

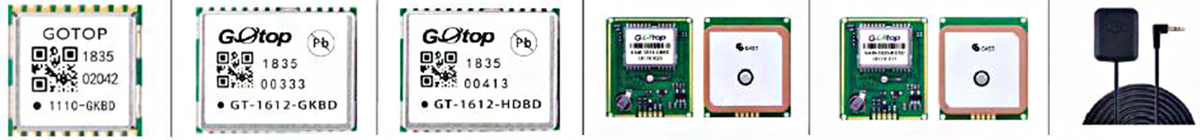

Model No.	GT-1110-GKBD	GT-1612-GKBD	GT-1612-HDBD	GAM-3026-GKBD	GAM-3026-HXBD	GGM-4538-GK3WDC150
IC Solution	GOKE	GOKE	Huada	GOKE	HEXIN	GOKE
Channel	66 Channels	66 Channels	72 Channels	66 Channels	72 Channels	66 Channels
Dimension	11x10x2.0mm	16x12x2.6mm	16x12x2.6mm	30x26x8.8mm	30x26x8.8mm	45x38x13mm
DC Vo1tage	DC:3.5V - 5.0V	DC:3.5V - 5.0V	DC:2.8V - 4.3V	DC:3.5V - 5.0V	DC:3.3V - 5.5V	DC:3.0V - 5.0V
Communi- cation	UART/TTL
Sensitivity	-165dBm	-165dBm	-162dBm	-165dBm	-165dBm	-165dBm
Precision	PPS: 40ns RMS
	Position: 5m CEP without SA	Position: 2.5m CEP without SA	Position: 5m CEP without SA	Position: 2.5m CEP without SA	Position: 5m CEP without SA	Position: 5m CEP without SA
	Speed: 0.1m/s without SA
TTFF	38s
Time to start	1S
Power	26mA	26mA	26mA	30mA	26mA	40mA
Temperature	-40 to 85℃
