Products

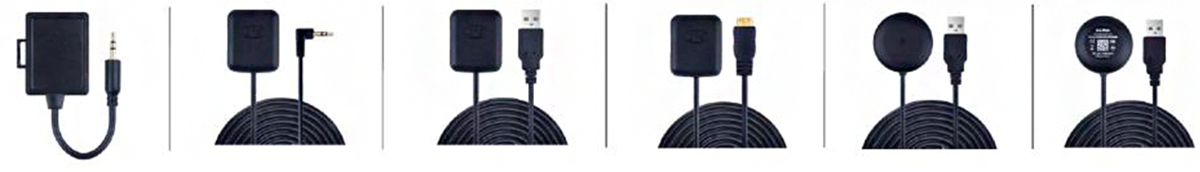

GPS Module (G-mouse)
| Model No. | GGM-3325-MTR2DC005 | GGM-4538-MTR3WDC150 | GUM-4538-MTBDUSB150 | GRM-4538-MTBDUSB150 | GGM-R53-MTDBMX500L | GRM-R53-MTRMX300L |
|---|---|---|---|---|---|---|
| IC Solution | MTK | |||||
| Channel | 66 Channels | |||||
| Dimension | 33x25x8.0mm | 45x38x13mm | 45x38x13mm | 45x38x13mm | R53X 15mm | R53X 15mm |
| DC Vo1tage | DC:3.5V - 5.0V | DC:3.5V - 5.0V | DC:USB5.0V | DC:4.5V - 5.0V | DC:3.0V - 5.5V | DC:4.5V - 5.5V |
| Communi- cation |
UART/TTL | UART/TTL | USB2.0 | RS232 | UART/TTL | RS232 |
| Sensitivity | -165dBm | |||||
| Precision | PPS: 40ns RMS | |||||
| Position: 5m CEP without SA | ||||||
| Speed: 0.1m/s without SA | ||||||
| TTFF | 38s | |||||
| Time to start | 1S | |||||
| Power | 28mA | 28mA | 28mA | 35mA | 35mA | 35mA |
| Temperature | -40 to 85℃ | |||||
