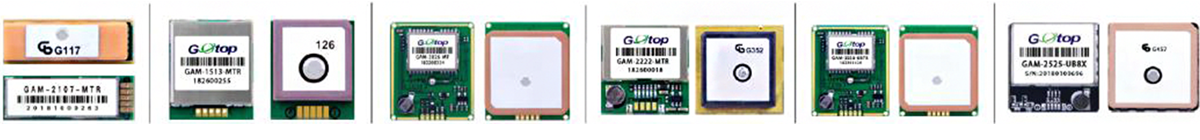

GPS Module (with Antenna)

Model No.	GAM-2107-MTR	GAM-1513-MTR	GAM-3026-MT	GAM-1513-SN	GAM-3026-UB7X	GAM-2525-UB8X
IC Solution	MTK	MTK	MTK	Sony	Ublox	Ublox
Channel	66 Channels	56 Channels	66 Channels	66 Channels	56 Channels	75 Channels
Dimension	21x7.0x6.8mm	15x13x6.8mm	30x26x6.8mm	15x13x6.8mm	30x26x6.8mm	25x25x8.7mm
DC Vo1tage	DC:2.8V - 4.3V	DC:2.8V - 4.3V	DC:2.8V - 4.3V	DC:2.8V - 5.5V	DC:3.0V - 5.5V	DC:3.0V - 5.5V
Communi- cation	UART/TTL
Sensitivity	-165dBm	-165dBm	-165dBm	-165dBm	-165dBm	-167dBm
Precision	PPS: 40ns RMS	PPS: 40ns RMS	PPS: 40ns RMS	PPS: 40ns RMS	PPS: 10ns RMS	PPS: 10ns RMS
	Position: 5m CEP without SA	Position: 5m CEP without SA	Position: 5m CEP without SA	Position: 2.5m CEP without SA	Position: 5m CEP without SA	Position: 5m CEP without SA
	Speed: 0.1m/s without SA
TTFF	38s
Time to start	1S
Power	28mA	28mA	28mA	8mA	28mA	40mA
Temperature	-40 to 85℃
